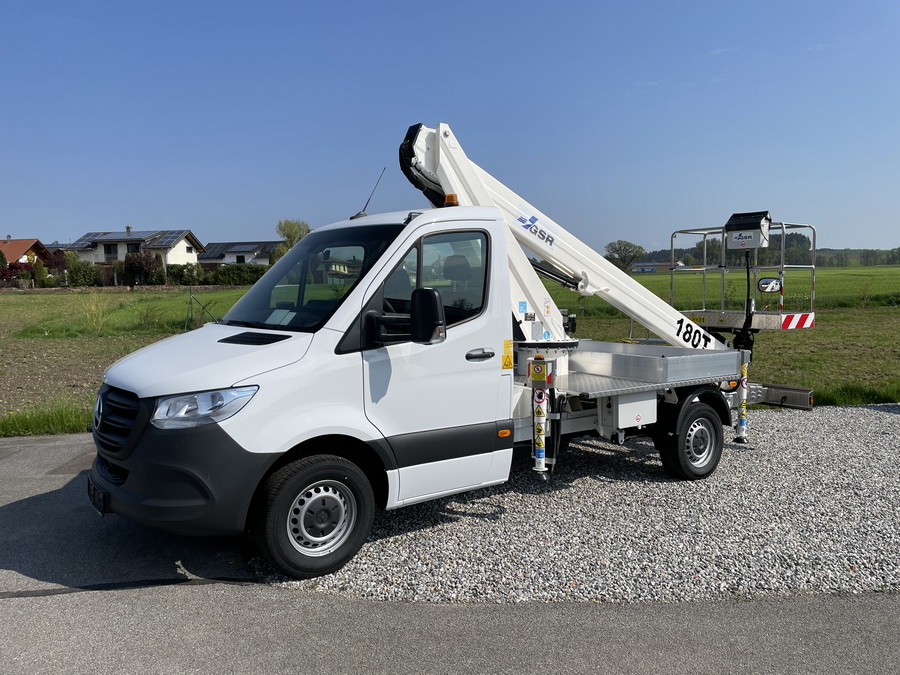

GSR B180T auf Mercedes

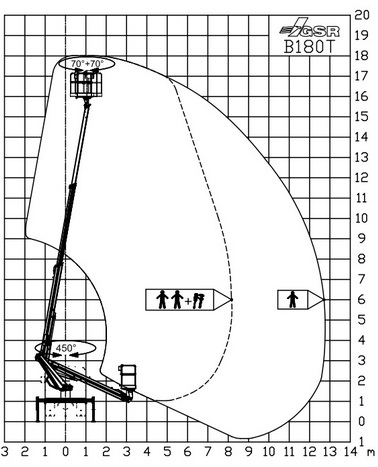

Working height: approx. 17.70 m
Basket load: 300 kg / 2 persons
Rotation range: 450°
Lateral reach: approx. 12.70 m / 80 kg
Total weight: 3,500 kg
Clearance width: approx. 2.20 m
Clearance height: approx. 2.98 m
Total length: approx. 7.15 m

Platform structure made of aluminum tread plate
Internal power supply
Internal telescopic cylinder
Electro-hydraulic proportional control
Drive via vehicle hydraulic pump
Start/stop diesel engine in the work basket
Steel telescopic boom
Load moment limiter
Aluminum work basket, rotatable 2 x 70°, dimensions: 0.70 x 1.40 x 1.10 m
Hydraulic quick-release stabilizer, variable, single-sided, narrow and wide
H-shaped stabilizers at the front,  at rear vertical stabilisers
Wooden plates 40 x 40 cm with bracket
Driver’s cab – collision protection
