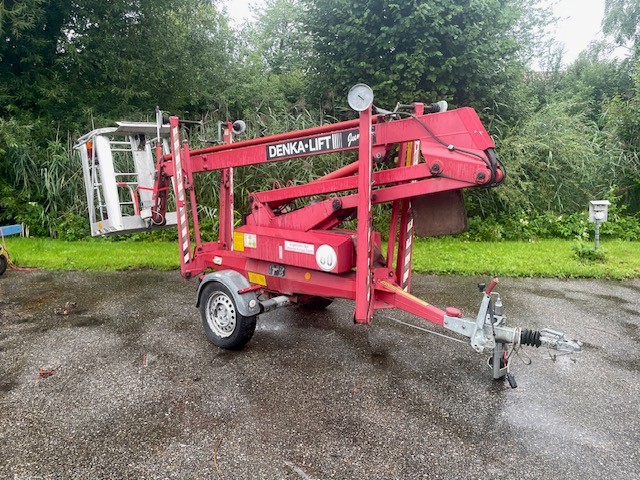

DENKA•LIFT DK8 JR10
Technical data:
Manufacturing Year:
1998
Working height:
10,30 m
Horizontal outreach:
6,00 m
Basket load:
120 kg
Outriggers:
Kurbler
Weight:
925 kg
Width:
1,40 m
Drive:
Netz 230V
Description:

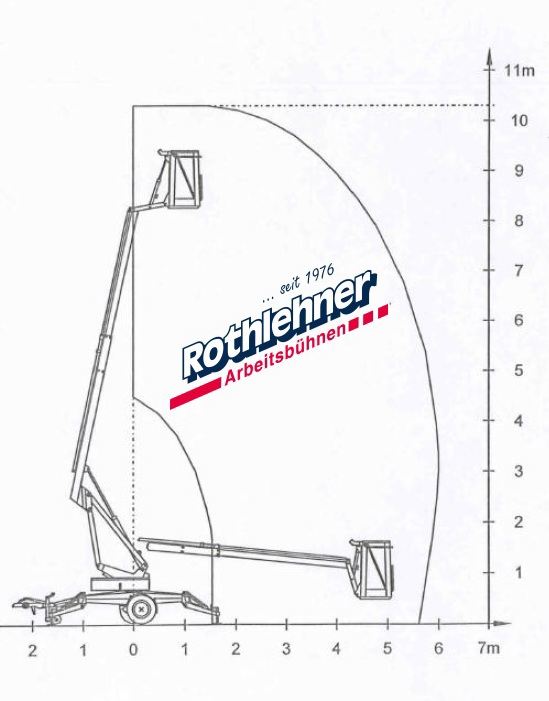

Working height: 10.30 m
Basket load: 120 kg / 1 person
Rotation range: endless
Lateral reach: 6.00 m / 120 kg
Weight: approx. 925 kg
Clearance width: 1.40 m
Minimum clearance width: 0.75 m
Clearance height: 1.95 m
Total length: 5.06 m
Minimum total length: 4.50 m
2-speed control, on-off
230 V mains power supply
Steel telescopic boom
600 mm angle arm
Aluminum work basket
Removable control panel
230 V socket in work basket
Tool storage in work basket
Mechanical outriggers
Base plates 40 x 40 x 2.7 cm with bracket
Variable track width
Mechanical outriggers
