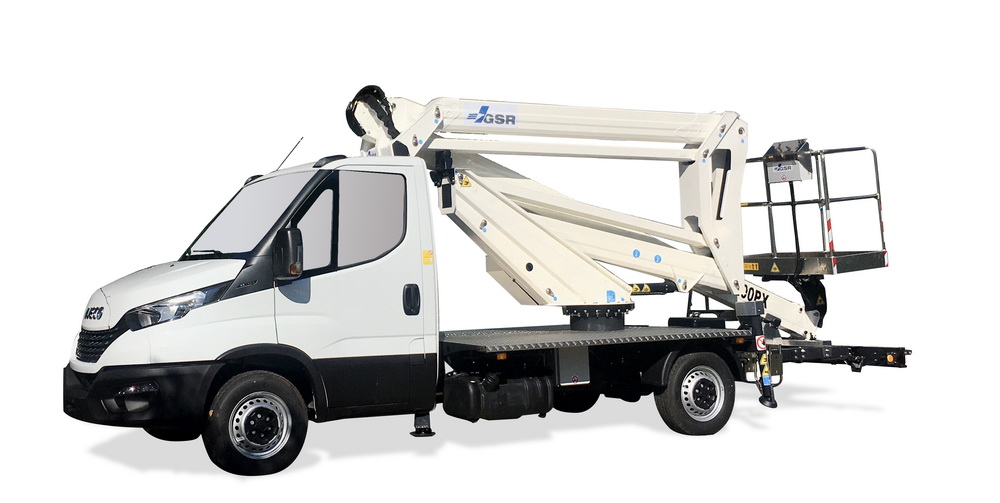

GSR B200PX Compact

Technical data:
Working height:
20,10 m
Horizontal outreach:
8,60 m
Basket load:
300 kg
Weight:
3500 kg

Description:

GSR B200PX Compact:  The truck platform with wide vertical support offers a maximum basket load of 300 kg in the full working range, with a maximum reach of 8.55 m.

The biggest advantage of the double-joint technique: Unlike a telescopic stage, the lift can be set closer to the object, making it ideal for working on roofs.
Due to a variety of optional equipment options, the device can be tailored to individual requirements to the respective application.

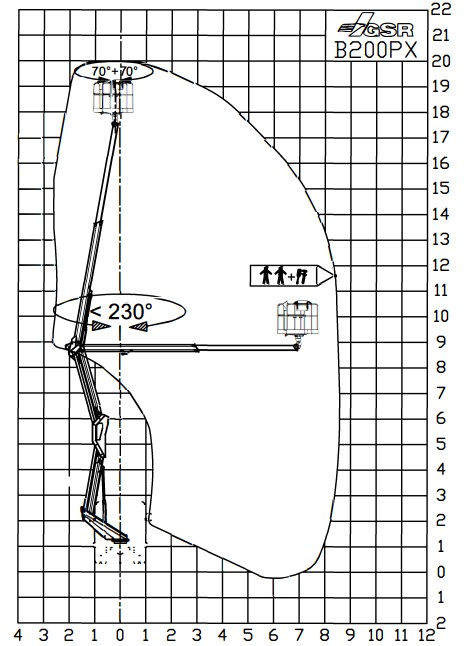

Diagram
