EasyLift RA31

Technical data:
Manufacturing Year:
2021
Working height:
30,20 m
Horizontal outreach:
14,50 m
Basket load:
230 kg
Weight:
4200 kg
Width:
0,89 m
Drive:
230V & Dieselmotor
Datasheet +
Put on my list Delete from my list
Request offer
Description:

Working height: approx. 30.20 m
Basket load: 230 kg / 2 persons
Rotation range: 440°
Lateral reach: approx. 14.50 m / 120 kg
Own weight: approx. 4,200 kg
Minimum clearance width: approx. 0.89 m
Minimum clearance height: approx. 2.04 m
Total length: approx. 6.95 m

– RAL 9010 pure white
– Proportional control
– 230V mains power & Kubota 18.5 kW diesel engine
– Load moment limiter
– Movable jib
– Aluminum work basket, rotatable 2 x 90°,
Dimensions: 0.70 x 1.40 x 1.10 m, removable
– 230V socket in work basket
– ​​Operating hour meter
– Hydraulic quick-release stabilizer with
stabilizer pressure monitoring, variable narrow and Wide
– Radio remote control
– Automatic levelling
– Non-marking chains
– Wooden frame on the basket

See the basic functionality of an EasyLift RA31 crawler aerial work platform in the product video

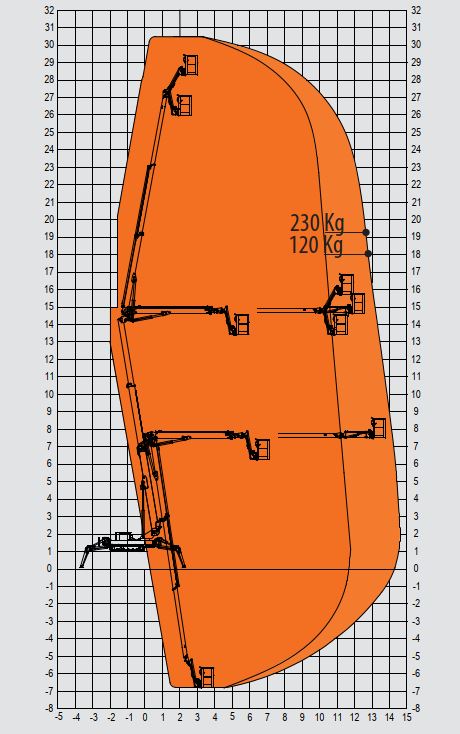

Diagram
